3.4 - Batch normalization

!wget -nc --no-cache -O init.py -q https://raw.githubusercontent.com/rramosp/2021.deeplearning/main/content/init.py
import init; init.init(force_download=False);

import numpy as np
import tensorflow as tf
import matplotlib.pyplot as plt
import pandas as pd
%matplotlib inline
%load_ext tensorboard

from sklearn.datasets import *
from local.lib import mlutils
tf.__version__

!wget -nc https://s3.amazonaws.com/rlx/mini_cifar.h5

import h5py
with h5py.File('mini_cifar.h5','r') as h5f:
    x_cifar = h5f["x"][:]
    y_cifar = h5f["y"][:]

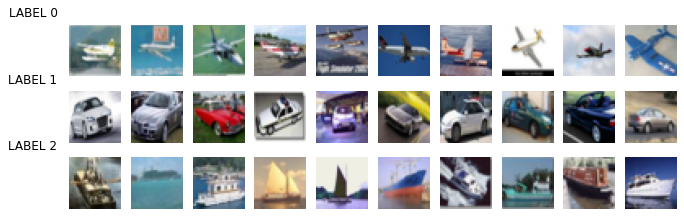

mlutils.show_labeled_image_mosaic(x_cifar, y_cifar)

print(np.min(x_cifar), np.max(x_cifar))

from sklearn.model_selection import train_test_split

x_train, x_test, y_train, y_test = train_test_split(x_cifar, y_cifar, test_size=.25)
num_classes = len(np.unique(y_train))
print(x_train.shape, y_train.shape, x_test.shape, y_test.shape)
print("\ndistribution of train classes")
print(pd.Series(y_train).value_counts())
print("\ndistribution of test classes")
print(pd.Series(y_test).value_counts())
print("\nnum classes", num_classes)
x_train = x_train.astype(np.float32)
y_train = y_train.astype(np.float32)
x_test = x_test.astype(np.float32)
y_test = y_test.astype(np.float32)

x_trainf = np.r_[[i.flatten() for i in x_train]]
x_testf  = np.r_[[i.flatten() for i in x_test]]
x_trainf.shape, x_testf.shape

from tensorflow.keras import Model
from tensorflow.keras.activations import relu, sigmoid, tanh, linear, softmax
from progressbar import progressbar as pbar
from scipy.stats import gaussian_kde

class MyModel(Model):

    def build(self, input_shape):

        self.w1 = self.add_weight(shape=(input_shape[-1], 100), initializer='random_normal', trainable=True, dtype=tf.float32)
        self.b1 = self.add_weight(shape=(100, ), initializer='random_normal', trainable=True, dtype=tf.float32)

        self.w2 = self.add_weight(shape=(100, 3), initializer='random_normal', trainable=True, dtype=tf.float32)
        self.b2 = self.add_weight(shape=(3, ), initializer='random_normal', trainable=True, dtype=tf.float32)

    @tf.function
    def get_z1(self, X):
        r = tf.matmul(X,self.w1)+self.b1
        return r

    @tf.function
    def get_a1(self, X):
        r = tf.tanh(self.get_z1(X))
        return r

    @tf.function
    def get_z2(self, X):
        a1 = self.get_a1(X)
        r = tf.matmul(a1,self.w2)+self.b2
        return r

    @tf.function
    def get_a2(self, X):
        return softmax(self.get_z2(X))

    @tf.function
    def call(self, X):
        a2 = self.get_a2(X)
        return a2

    @tf.function
    def train_step(self, X,y):
        preds = model(X)
        with tf.GradientTape() as tape:
            loss_value = tf.reduce_mean(self.loss(model(X), y))
        grads = tape.gradient(loss_value, self.trainable_variables)

        self.optimizer.apply_gradients(zip(grads, self.trainable_variables))
        return loss_value

    def fit(self, X,y, epochs=10, batch_size=32):
        self.hloss = []
        self.hz1, self.hz2 = [], []
        self.ha1, self.ha2 = [], []
        for epoch in pbar(range(epochs)):
            idxs = np.random.permutation(len(X))
            for step in range(len(X)//batch_size+((len(X)%batch_size)!=0)):

                X_batch = X[idxs][step*batch_size:(step+1)*batch_size]
                y_batch = y[idxs][step*batch_size:(step+1)*batch_size]
                loss_value = self.train_step(X_batch, y_batch)
                self.hz1.append(self.get_z1(X_batch).numpy().flatten())
                self.hz2.append(self.get_z2(X_batch).numpy().flatten())
                self.ha1.append(self.get_a1(X_batch).numpy().flatten())
                self.ha2.append(self.get_a2(X_batch).numpy().flatten())
                self.hloss.append(loss_value)

    def score(self, X, y):
        return np.mean(model.predict(X).argmax(axis=1) == y)

    def plot_hist(self):
        def plot_z_history(s):
            s = s[::5]
            for i,data in enumerate(pbar(s)):
                kde = gaussian_kde(data)
                xrange = np.linspace(np.min(data), np.max(data),100)
                plt.plot(xrange, kde(xrange)-i*.005,
                         color=plt.cm.RdBu(255*i/len(s)),
                         alpha=.5)
            plt.yticks([0,-i*.005], [0,len(model.hz1)]);
            plt.ylabel("step nb")
            plt.xlabel("activation")
            plt.grid();
        plt.figure(figsize=(15,6))
        plt.subplot(231)
        plt.plot(self.hloss); plt.grid(); plt.title("loss"); plt.xlabel("steps")
        plt.subplot(232)
        plot_z_history(self.hz1); plt.title("z1 (BEFORE activation function at layer 1)\nred signals the first epoch")
        plt.subplot(233)
        plot_z_history(self.hz2); plt.title("z2 (BEFORE activation function at layer 2)\nred signals the first epoch")
        plt.subplot(235)
        plot_z_history(self.ha1); plt.title("a1 (AFTER activation function at layer 1)\nred signals the first epoch")
        plt.subplot(236)
        plot_z_history(self.ha2); plt.title("a2 (AFTER activation function at layer 2)\nred signals the first epoch")
        plt.tight_layout()

from tensorflow.keras.optimizers import SGD, Adam
from tensorflow.keras.losses import categorical_crossentropy

model = MyModel()
model.compile(optimizer="adam", loss=categorical_crossentropy)
model.fit(x_trainf, np.eye(3)[y_train.astype(int)], epochs=20, batch_size=64)
print ("train accuracy %.3f"%model.score(x_trainf, y_train))
print ("test  accuracy %.3f"%model.score(x_testf, y_test))
model.plot_hist()
