# init repo notebook
!git clone https://github.com/rramosp/ppdl.git > /dev/null 2> /dev/null
!mv -n ppdl/content/init.py ppdl/content/local . 2> /dev/null
!pip install -r ppdl/content/requirements.txt > /dev/null
Functional, sequential and custom models#
import numpy as np
import tensorflow as tf
import matplotlib.pyplot as plt
import pandas as pd
%matplotlib inline
%load_ext tensorboard
from sklearn.datasets import *
from local.lib import mlutils
from IPython.display import Image
tf.__version__
---------------------------------------------------------------------------
ImportError Traceback (most recent call last)
/tmp/ipykernel_90367/4033104410.py in <module>
7
8 from sklearn.datasets import *
----> 9 from local.lib import mlutils
10 from IPython.display import Image
11 tf.__version__
ImportError: cannot import name 'mlutils' from 'local.lib' (unknown location)
Implementing linear regresion in TF#
d = pd.read_csv("local/data/trilotropicos.csv")
y = d.densidad_escamas.values.astype(np.float32)
X = np.r_[[d.longitud.values]].T.astype(np.float32)
print(X.shape, y.shape)

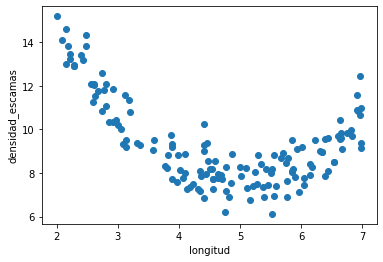

plt.scatter(d.longitud, d.densidad_escamas)
plt.xlabel(d.columns[0])
plt.ylabel(d.columns[1]);
(150, 1) (150,)
from sklearn.linear_model import LinearRegression
lr = LinearRegression()
lr.fit(X,y)
lr.coef_, lr.intercept_
(array([-0.71805906], dtype=float32), 12.689999)
Version 1: raw low level with gradient descent#
beware of typing.
tensorflowis very sensitive to numeric data types (tf.float32,tf.float64, etc.) Default types innumpyandtensorflowmight not always be the same
from progressbar import progressbar as pbar
epochs = 4000
learning_rate = 0.01
# symbolic variables
w = tf.Variable(np.random.normal(size=(X.shape[-1], 1), scale=.6), dtype=tf.float32)
b = tf.Variable(np.random.normal(size=(1,), scale=.6), dtype=tf.float32)
h = []
#optimization loop
for epoch in pbar(range(epochs)):
with tf.GradientTape() as t:
preds = tf.matmul(X,w)+b
loss = tf.reduce_mean( (preds-y.reshape(-1,1))**2)
gw, gb = t.gradient(loss, [w, b])
w.assign_sub(learning_rate * gw)
b.assign_sub(learning_rate * gb)
h.append([gw.numpy()[0][0], gb.numpy()[0], w.numpy()[0][0], b.numpy()[0], loss.numpy()])
h = np.r_[h]
print (b.numpy(), w.numpy())
2022-05-06 14:42:05.321330: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:939] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2022-05-06 14:42:05.596433: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:939] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2022-05-06 14:42:05.597123: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:939] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2022-05-06 14:42:05.601519: I tensorflow/core/platform/cpu_feature_guard.cc:151] This TensorFlow binary is optimized with oneAPI Deep Neural Network Library (oneDNN) to use the following CPU instructions in performance-critical operations: AVX2 FMA
To enable them in other operations, rebuild TensorFlow with the appropriate compiler flags.
2022-05-06 14:42:05.605566: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:939] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2022-05-06 14:42:05.606235: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:939] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2022-05-06 14:42:05.607022: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:939] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2022-05-06 14:42:07.492241: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:939] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2022-05-06 14:42:07.492474: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:939] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2022-05-06 14:42:07.492608: I tensorflow/stream_executor/cuda/cuda_gpu_executor.cc:939] successful NUMA node read from SysFS had negative value (-1), but there must be at least one NUMA node, so returning NUMA node zero
2022-05-06 14:42:07.492735: I tensorflow/core/common_runtime/gpu/gpu_device.cc:1525] Created device /job:localhost/replica:0/task:0/device:GPU:0 with 5964 MB memory: -> device: 0, name: NVIDIA GeForce RTX 2080, pci bus id: 0000:01:00.0, compute capability: 7.5
100% (4000 of 4000) |####################| Elapsed Time: 0:00:08 Time: 0:00:08
[12.677922] [[-0.7156864]]

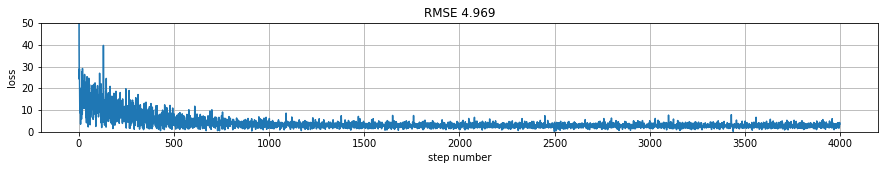

rmse = tf.reduce_mean((tf.matmul(X,w)+b-y)**2).numpy()
plt.figure(figsize=(15,2));
plt.plot(h[:,-1]); plt.xlabel("step number"); plt.ylabel("loss"); plt.grid();
plt.title("RMSE %.3f"%rmse);
plt.ylim(0,50)
(0.0, 50.0)
Version 2: using tf.function to speed up#
epochs = 4000
# initialize weights
w.assign(np.random.normal(size=(X.shape[-1],1)).astype(np.float32)*.6)
b.assign(np.random.normal(size=(1,)).astype(np.float32))
@tf.function
def get_gradient(w, b, X, y):
with tf.GradientTape() as t:
preds = tf.matmul(X,w)+b
loss = tf.reduce_mean( (preds-y)**2)
gw, gb = t.gradient(loss, [w, b])
return gw, gb, loss
#optimization loop
h = []
for epoch in pbar(range(epochs)):
gw, gb, loss = get_gradient(w, b, X, y.reshape(-1,1))
w.assign_sub(learning_rate * gw)
b.assign_sub(learning_rate * gb)
h.append([gw.numpy()[0][0], gb.numpy()[0], w.numpy()[0][0], b.numpy()[0], loss.numpy()])
h = np.r_[h]
print (b.numpy(), w.numpy())
100% (4000 of 4000) |####################| Elapsed Time: 0:00:05 Time: 0:00:05
[12.678748] [[-0.7158488]]

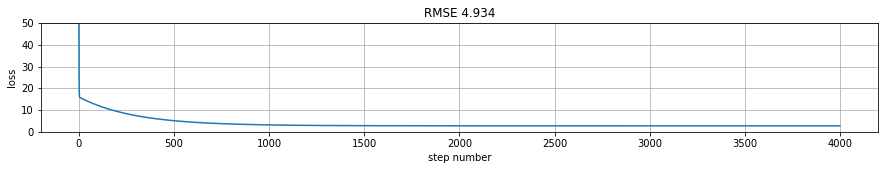

predictions = tf.matmul(X,w)+b
rmse = tf.reduce_mean((predictions-y)**2).numpy()
plt.figure(figsize=(15,2));
plt.plot(h[:,-1]); plt.xlabel("step number"); plt.ylabel("loss"); plt.grid();
plt.title("RMSE %.3f"%rmse);
plt.ylim(0,50)
(0.0, 50.0)
Version 3: using batches with random shuffling (stochastic gradient descent)#
notice we tune the number of epochs as the number of weights updates increases
#optimization loop
batch_size = 16
epochs = 400
# initialize weights
w.assign(np.random.normal(size=(X.shape[-1],1))*.6)
b.assign(np.random.normal(size=(1,)))
h = []
for epoch in pbar(range(epochs)):
idxs = np.random.permutation(len(X))
for step in range(len(X)//batch_size+((len(X)%batch_size)!=0)):
X_batch = X[idxs][step*batch_size:(step+1)*batch_size]
y_batch = y[idxs][step*batch_size:(step+1)*batch_size]
gw, gb, loss = get_gradient(w, b, X_batch, y_batch.reshape(-1,1))
w.assign_sub(learning_rate * gw)
b.assign_sub(learning_rate * gb)
h.append([gw.numpy()[0][0], gb.numpy()[0], w.numpy()[0][0], b.numpy()[0], loss.numpy()])
h = np.r_[h]
print (b.numpy(), w.numpy())
100% (400 of 400) |######################| Elapsed Time: 0:00:04 Time: 0:00:04
[12.676858] [[-0.68440795]]

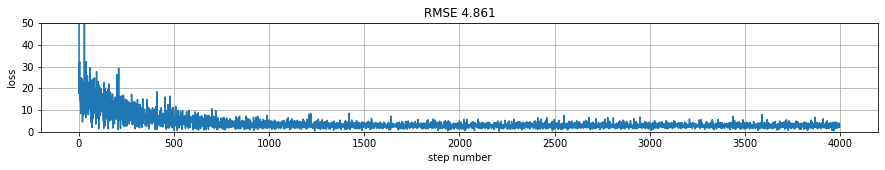

predictions = tf.matmul(X,w)+b
rmse = tf.reduce_mean((predictions-y)**2).numpy()
plt.figure(figsize=(15,2));
plt.plot(h[:,-1]); plt.xlabel("step number"); plt.ylabel("loss"); plt.grid();
plt.title("RMSE %.3f"%rmse);
plt.ylim(0,50)
(0.0, 50.0)
Version 4: packing up with Keras class API and custom SGD#
observe:
the
buildmethod that is called by Keras wheneverinput_shapeis knownwe use
add_weightso that our model weights are known to the Keras model framework (trainable_variables,get_weights, etc.)
see here
class LinearRegressionModel4(tf.keras.Model):
def build(self, input_shape):
self.w = self.add_weight(shape=(input_shape[-1], 1), initializer='random_normal',
trainable=True, dtype=tf.float32)
self.b = self.add_weight(shape=(1,), initializer='random_normal',
trainable=True, dtype=tf.float32)
def call(self, inputs):
return tf.matmul(inputs, self.w) + self.b
@tf.function
def get_gradient(self, X, y):
with tf.GradientTape() as t:
loss = tf.reduce_mean( (self(X)-y)**2)
gw, gb = t.gradient(loss, [self.w, self.b])
return gw, gb, loss
def fit(self, X,y, epochs, batch_size=16, learning_rate=0.01):
y = y.reshape(-1,1)
self.h=[]
for epoch in pbar(range(epochs)):
idxs = np.random.permutation(len(X))
for step in range(len(X)//batch_size+((len(X)%batch_size)!=0)):
X_batch = X[idxs][step*batch_size:(step+1)*batch_size]
y_batch = y[idxs][step*batch_size:(step+1)*batch_size]
gw, gb, loss = self.get_gradient(X_batch,y_batch)
self.w.assign_sub(learning_rate * gw)
self.b.assign_sub(learning_rate * gb)
self.h.append([gw.numpy()[0][0], gb.numpy()[0], w.numpy()[0][0], b.numpy()[0], loss.numpy()])
self.h = np.r_[self.h]
model = LinearRegressionModel4()
observe that we can use the object directly on data to get predictions
model(X[:2])
<tf.Tensor: shape=(2, 1), dtype=float32, numpy=
array([[-0.04066426],
[-0.04316743]], dtype=float32)>
or with the .predict method
model.predict(X[:2])
array([[-0.04066426],
[-0.04316743]], dtype=float32)
model.trainable_variables
[<tf.Variable 'linear_regression_model4/Variable:0' shape=(1, 1) dtype=float32, numpy=array([[0.00150557]], dtype=float32)>,
<tf.Variable 'linear_regression_model4/Variable:0' shape=(1,) dtype=float32, numpy=array([-0.0464113], dtype=float32)>]
model.get_weights()
[array([[0.00150557]], dtype=float32), array([-0.0464113], dtype=float32)]
and fit the model
model.fit(X, y, epochs=400, batch_size=16)
100% (400 of 400) |######################| Elapsed Time: 0:00:02 Time: 0:00:02
model.b.numpy(), model.w.numpy()
(array([12.6924925], dtype=float32), array([[-0.5818763]], dtype=float32))
predictions = model(X)
rmse = tf.reduce_mean((predictions-y)**2).numpy()
plt.figure(figsize=(15,2));
plt.plot(model.h[:,-1]); plt.xlabel("step number"); plt.ylabel("loss"); plt.grid();
plt.title("RMSE %.3f"%rmse);
plt.ylim(0,50)
(0.0, 50.0)
