4.2 - Convolutional Neural Networks

!wget -nc --no-cache -O init.py -q https://raw.githubusercontent.com/rramosp/2021.deeplearning/main/content/init.py
import init; init.init(force_download=False);

import tensorflow as tf
from time import time
import pandas as pd
import matplotlib.pyplot as plt
import numpy as np
from local.lib import mlutils
%matplotlib inline

from IPython.display import Image

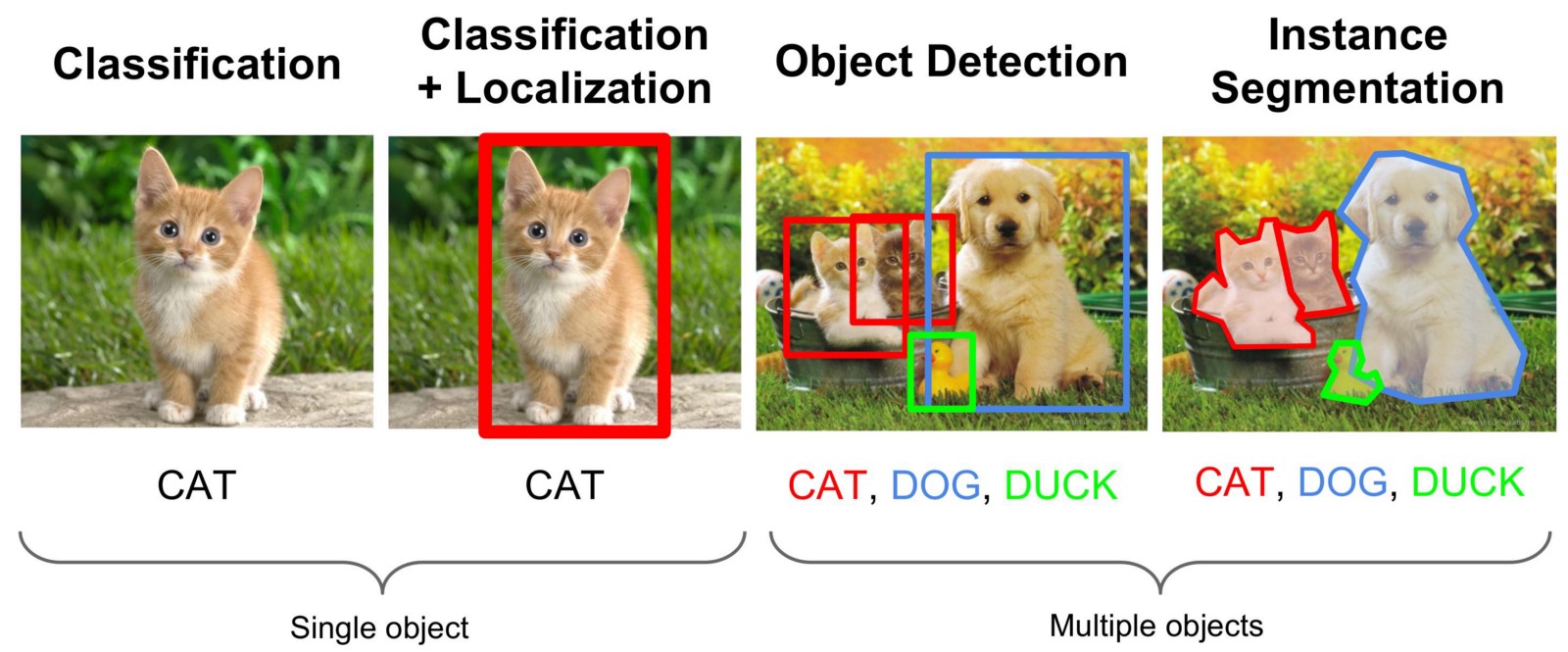

Image(filename='local/imgs/imgs_tasks.jpeg', width=800)

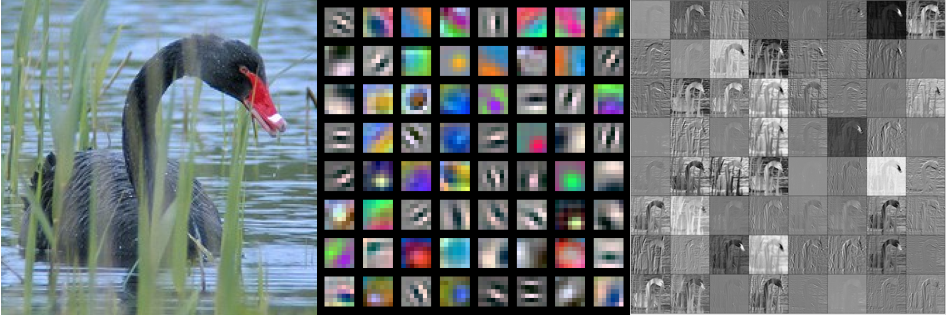

Image(filename='local/imgs/cnn_swan.png', width=800)

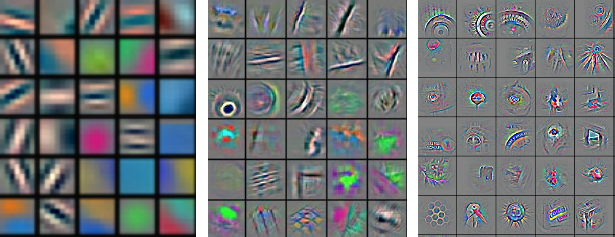

Image(filename='local/imgs/cnn_features.png', width=600)

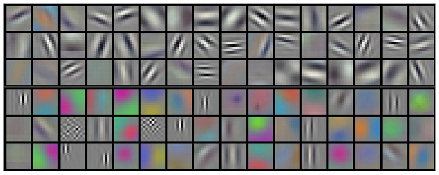

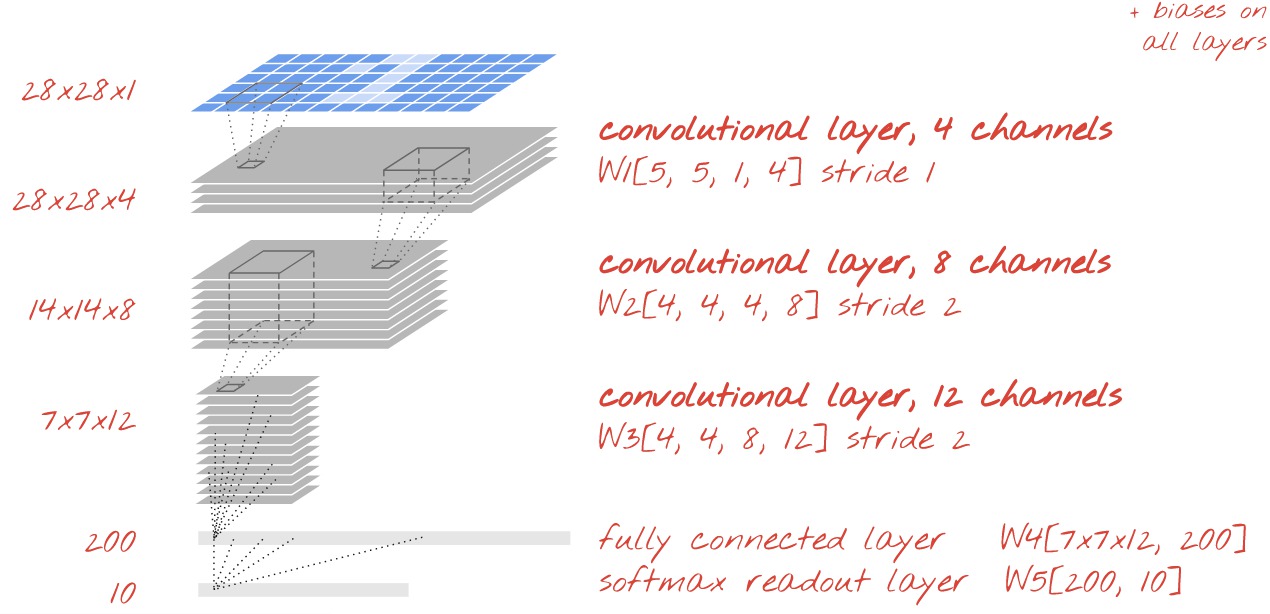

Image(filename='local/imgs/conv1.jpg', width=800)

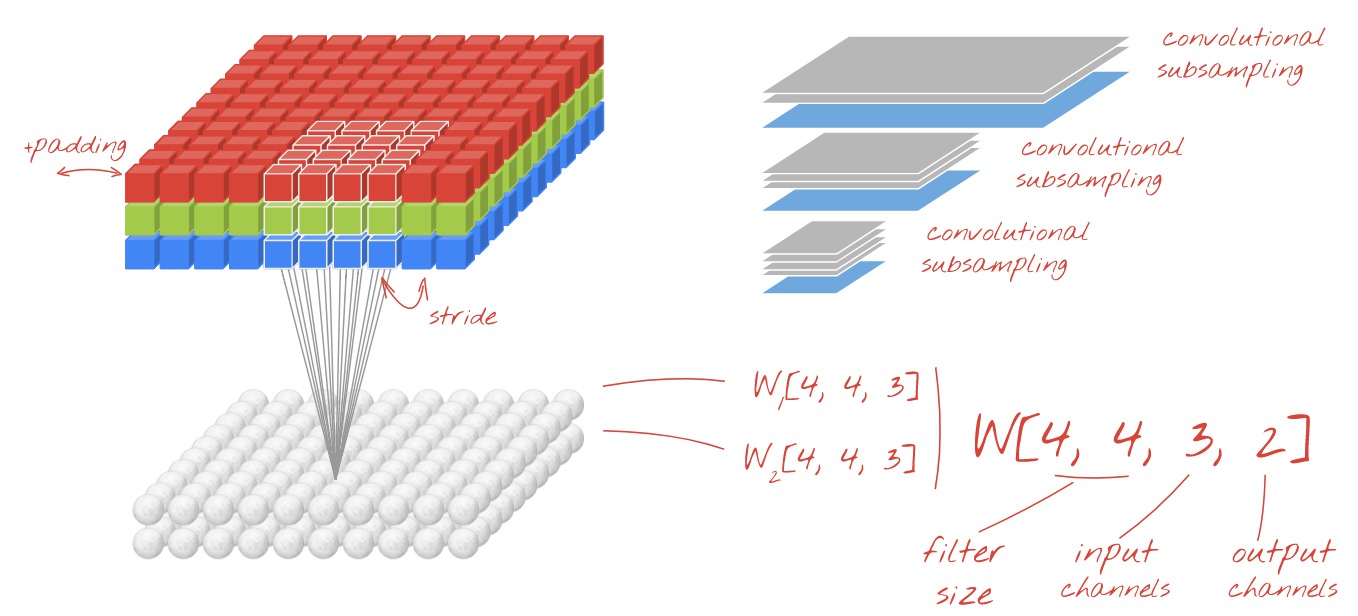

Image(filename='local/imgs/conv2.jpg', width=800)

Image(filename='local/imgs/cnn_features2.png', width=600)

!wget -nc https://s3.amazonaws.com/rlx/mini_cifar.h5

import h5py
with h5py.File('mini_cifar.h5','r') as h5f:
    x_cifar = h5f["x"][:]
    y_cifar = h5f["y"][:]

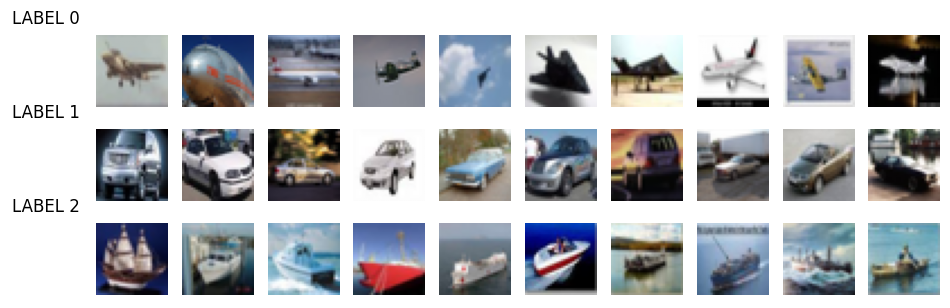

mlutils.show_labeled_image_mosaic(x_cifar, y_cifar)

print (np.min(x_cifar), np.max(x_cifar))

from sklearn.model_selection import train_test_split

x_train, x_test, y_train, y_test = train_test_split(x_cifar, y_cifar, test_size=.25)
print (x_train.shape, y_train.shape, x_test.shape, y_test.shape)
print ("\ndistribution of train classes")
print (pd.Series(y_train).value_counts())
print ("\ndistribution of test classes")
print (pd.Series(y_test).value_counts())

def get_conv_model_A(num_classes, img_size=32, compile=True):
    tf.keras.backend.clear_session()
    print ("using",num_classes,"classes")
    inputs = tf.keras.Input(shape=(img_size,img_size,3), name="input_1")
    layers = tf.keras.layers.Conv2D(15,(3,3), activation="relu", padding="SAME")(inputs)
    layers = tf.keras.layers.Flatten()(layers)
    layers = tf.keras.layers.Dense(16, activation=tf.nn.relu)(layers)
    layers = tf.keras.layers.Dropout(0.2)(layers)
    predictions = tf.keras.layers.Dense(num_classes, activation=tf.nn.softmax, name="output_1")(layers)
    model = tf.keras.Model(inputs = inputs, outputs=predictions)
    if compile:
        model.compile(optimizer='adam',
                      loss='sparse_categorical_crossentropy',
                      metrics=['accuracy'])
    return model

num_classes = len(np.unique(y_cifar))
model = get_conv_model_A(num_classes)

weights = model.get_weights()
for i in weights:
    print (i.shape)

initial_w0 = model.get_weights()[0].copy()

y_test.shape, y_train.shape, x_test.shape, x_train.shape

num_classes = len(np.unique(y_cifar))

def train(model, batch_size, epochs, model_name=""):
    tensorboard = tf.keras.callbacks.TensorBoard(log_dir="logs/"+model_name+"_"+"{}".format(time()))
    model.fit(x_train, y_train, epochs=epochs, callbacks=[tensorboard],
              batch_size=batch_size,
              validation_data=(x_test, y_test))
    metrics = model.evaluate(x_test, y_test)
    return {k:v for k,v in zip (model.metrics_names, metrics)}

model = get_conv_model_A(num_classes)
model.summary()

train(model, batch_size=32, epochs=10, model_name="model_A")

test_preds = model.predict(x_test).argmax(axis=1)

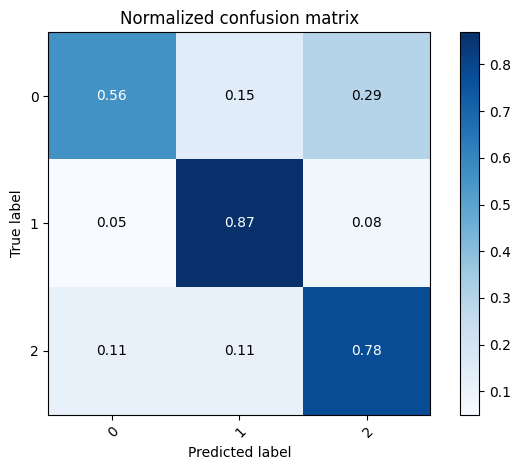

mlutils.plot_confusion_matrix(y_test, test_preds, classes=np.r_[0,1,2], normalize=True)

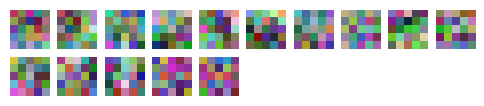

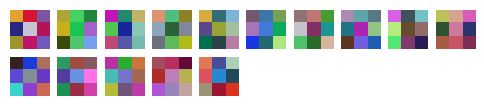

mlutils.display_imgs(initial_w0)

w0 = model.get_weights()[0]
print (w0.shape)

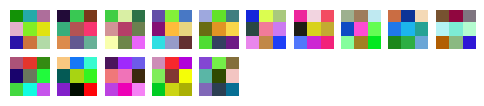

mlutils.display_imgs(w0)

idxs = np.random.permutation(len(x_test))[:5]
preds = model.predict(x_test[idxs])

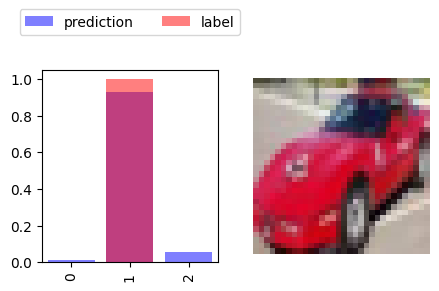

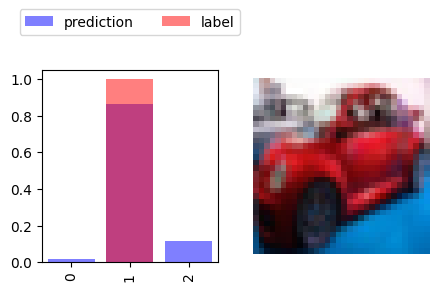

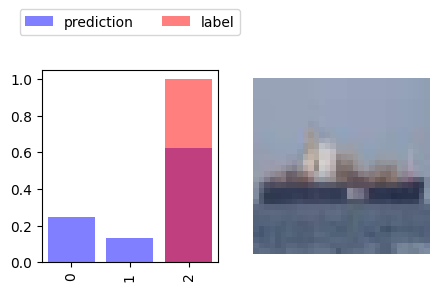

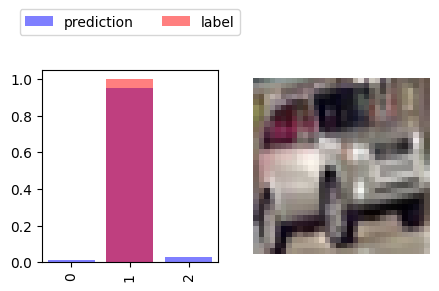

mlutils.show_preds(x_test[idxs],y_test[idxs], preds)

def get_conv_model_B(num_classes, img_size=32, compile=True):
    tf.keras.backend.clear_session()
    print ("using",num_classes,"classes")
    inputs = tf.keras.Input(shape=(img_size,img_size,3), name="input_1")
    layers = tf.keras.layers.Conv2D(15,(5,5), activation="relu")(inputs)
    layers = tf.keras.layers.MaxPool2D((2,2))(layers)
    layers = tf.keras.layers.Conv2D(60,(5,5), activation="relu")(layers)
    layers = tf.keras.layers.Flatten()(layers)
    layers = tf.keras.layers.Dense(16, activation=tf.nn.relu)(layers)
    layers = tf.keras.layers.Dropout(0.2)(layers)
    predictions = tf.keras.layers.Dense(num_classes, activation=tf.nn.softmax, name="output_1")(layers)
    model = tf.keras.Model(inputs = inputs, outputs=predictions)
    if compile:
        model.compile(optimizer='adam',
                      loss='sparse_categorical_crossentropy',
                      metrics=['accuracy'])
    return model

model = get_conv_model_B(num_classes)
model.summary()
train(model, batch_size=32, epochs=10, model_name="model_B")

w0 = model.get_weights()[0]
print (w0.shape)
mlutils.display_imgs(w0)

def get_conv_model_C(num_classes, img_size=32, compile=True):
    tf.keras.backend.clear_session()
    print ("using",num_classes,"classes")
    inputs = tf.keras.Input(shape=(img_size,img_size,3), name="input_1")
    layers = tf.keras.layers.Conv2D(96,(11,11), activation="relu")(inputs)
    layers = tf.keras.layers.MaxPool2D((2,2))(layers)
    layers = tf.keras.layers.Conv2D(60,(11,11), activation="relu")(layers)
    layers = tf.keras.layers.Flatten()(layers)
    layers = tf.keras.layers.Dense(16, activation=tf.nn.relu)(layers)
    layers = tf.keras.layers.Dropout(0.2)(layers)
    predictions = tf.keras.layers.Dense(num_classes, activation=tf.nn.softmax, name="output_1")(layers)
    model = tf.keras.Model(inputs = inputs, outputs=predictions)
    if compile:
        model.compile(optimizer='adam',
                      loss='sparse_categorical_crossentropy',
                      metrics=['accuracy'])
    return model

model = get_conv_model_C(num_classes)
model.summary()
train(model, batch_size=32, epochs=10, model_name="model_C")

w0 = model.get_weights()[0]
print (w0.shape)

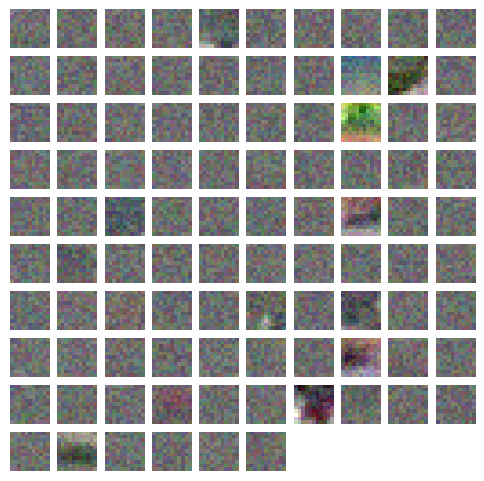

mlutils.display_imgs(w0)

bi = np.random.randint(len(x_test))

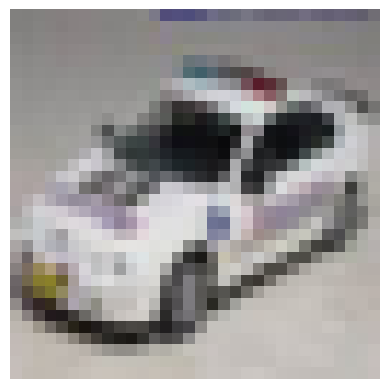

plt.imshow(x_test[bi])
plt.axis("off");

def output_at_layer(X, model, layer_name):
    from tensorflow.keras.models import Model
    return Model(inputs=model.input, outputs=model.get_layer(layer_name).output)(X).numpy()

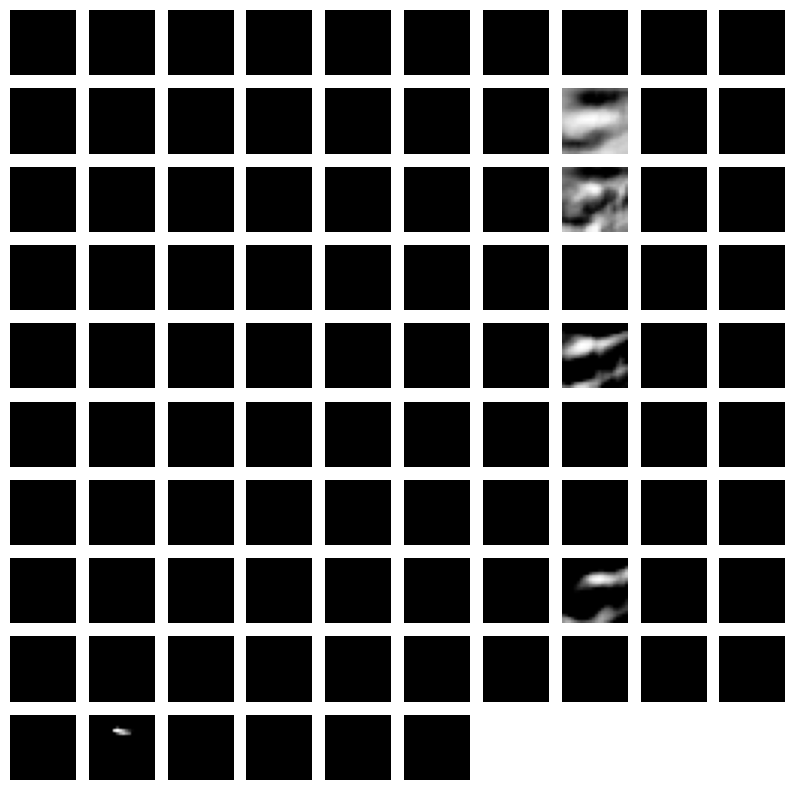

acts = output_at_layer(x_test[bi:bi+1], model, "conv2d")[0]
acts.shape

plt.figure(figsize=(10,10))
for i in range(acts.shape[-1]):
    plt.subplot(10,10,i+1)
    plt.imshow(acts[:,:,i], cmap=plt.cm.Greys_r )
    plt.axis("off")

idxs = np.random.permutation(len(x_test))[:5]
preds = model.predict(x_test[idxs])

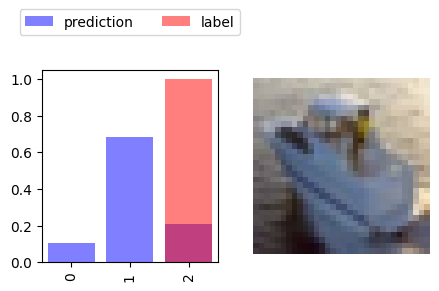

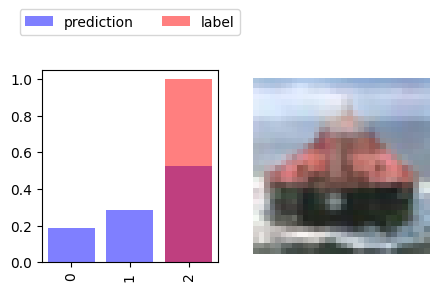

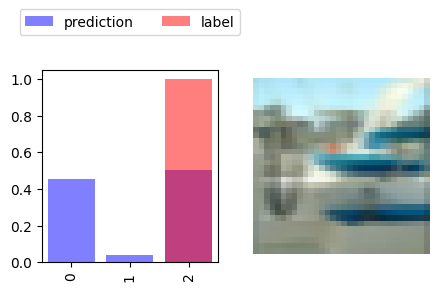

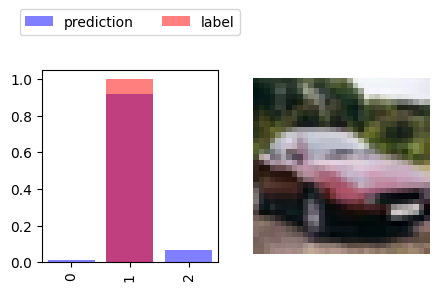

mlutils.show_preds(x_test[idxs],y_test[idxs], preds)
