# LAB 3.1 - TF model subclassing¶

!wget -nc --no-cache -O init.py -q https://raw.githubusercontent.com/rramosp/2021.deeplearning/main/content/init.py

from local.lib.rlxmoocapi import submit, session
import inspect

import numpy as np
import os
os.environ['TF_CPP_MIN_LOG_LEVEL'] = '3'
import tensorflow as tf
import matplotlib.pyplot as plt
%matplotlib inline

from sklearn.datasets import *
from local.lib import mlutils
tf.__version__


A multilayer perceptron

assuming $$n$$ layers, the output at layer $$i$$

$\mathbf{a}_i = \text{activation}(\mathbf{a}_{i-1} \cdot \mathbf{W}_i + \mathbf{b}_i)$

at the first layer

$\mathbf{a}_0 = \text{activation}(\mathbf{X} \cdot \mathbf{W}_0 + \mathbf{b}_0)$

and the layer prediction is the output of the last layer:

$\hat{\mathbf{y}} = \mathbf{a}_{n-1}$

with $$\text{activation}$$ being an activation function, such as $$\text{sigmoid}(z) = \frac{1}{1+e^{-z}}$$, $$\text{tanh}$$, $$\text{ReLU}$$, etc.

Cost (with regularization)

$J(\mathbf{b}_1, b_2, \mathbf{W}_1, \mathbf{W}_2) = \frac{1}{m}\sum_{i=0}^{m-1} (\hat{y}-y)^2 + \lambda \sum_{i=0}^{n-1} \bigg[ \| \mathbf{b}_i\|^2 + \|\mathbf{W}_i\|^2 \bigg]$

$$\lambda$$ regulates the participation of the regularization terms. Given a vector or matrix $$\mathbf{T}$$, its squared norm is denoted by $$||\mathbf{T}||^2 \in \mathbb{R}$$ and it’s computed by squaring all its elements and summing them all up.

## TASK 1: Model build¶

Observe the class template below which is used to build a multilayer perceptron with a specific number of layers. In the constructor.

• neurons must be a list of integers specifying the number of neurons of each hidden layer and the output layer.

• activations must be a list of strings specifying the activations of the neurons of each layer.

Both neurons and activations must have the same number of elements. Observe how in the class constructor (__init__) we check for this and transform the list of activation strings to actual TF funcions.

YOU MUST complete the build method in the class below so that self.W and self.b contain a list of tensors with randomly initialized weights for each layer. Create the weights by calling the self.add_weights function for each layer, both for the weights (add them to list self.W) and the biases (add them to list b). Call self.add_weights with parameters initializer='random_normal', trainable=True, dtype=tf.float32.

Note that the shape of the first layer weights are not known until the build method is called which is when the input_shape for the input data is known. For instance, the following invokations

>> mlp = MLP_class(neurons=[10,5,1], activations=["tanh","tanh", "sigmoid"])
>> mlp.build([None, 2])
>> print ("W shapes", [i.shape for i in mlp.W])


should produce the following output

W shapes [TensorShape([2, 10]), TensorShape([10, 5]), TensorShape([5, 1])]
b shapes [TensorShape(), TensorShape(), TensorShape()]

def MLP(neurons, activations, reg=0.):

from tensorflow.keras import Model
from tensorflow.keras.activations import relu, sigmoid, tanh, linear
import numpy as np
import tensorflow as tf

class MLP_class(Model):
def __init__(self, neurons, activations, reg=0.):
super().__init__()
self.activation_map = {"linear": linear, "relu": relu, "tanh":tanh, "sigmoid": sigmoid}

assert len(neurons)==len(activations), \
"must have the same number of neurons and activations"

assert np.alltrue([i in self.activation_map.keys() for i in activations]), \
"activation string not recognized"

self.neurons = neurons
self.reg = reg
self.activations = [self.activation_map[i] for i in activations]

super().__init__()

def build(self, input_shape):
self.W = []
self.b = []

return MLP_class(neurons, activations, reg)


mlp = MLP(neurons=[10,5,1], activations=["tanh","tanh", "sigmoid"])
mlp.build([None, 2])
print ("W shapes", [i.shape for i in mlp.W])
print ("b shapes", [i.shape for i in mlp.b])


Registra tu solución en linea

student.submit_task(namespace=globals(), task_id='T1');


## Task 2: Model call¶

Complete the call method below so that it computes the output of the configured MLP with the input X as

$\hat{\mathbf{y}} = \mathbf{a}_{n-1}$

as described above. Use self.W, self.b and self.activations as constructed previously on the build and __init__ methods.

def MLP2(neurons, activations, reg=0.):

from tensorflow.keras import Model
from tensorflow.keras.activations import relu, sigmoid, tanh, linear

class MLP_class(Model):
def __init__(self, neurons, activations, reg=0.):
super().__init__()
self.activation_map = {"linear": linear, "relu": relu, "tanh":tanh, "sigmoid": sigmoid}

assert len(neurons)==len(activations), \
"must have the same number of neurons and activations"

assert np.alltrue([i in self.activation_map.keys() for i in activations]), \
"activation string not recognized"

self.neurons = neurons
self.reg = reg
self.activations = [self.activation_map[i] for i in activations]

super().__init__()

def build(self, input_shape):
self.W = []
self.b = []

@tf.function
def call(self, X):
a = ... # YOUR CODE HERE
return s

return MLP_class(neurons, activations, reg)


test manually your code, the following two cells must return the same value everytime you execute them. Observe your MLP will initialize to different random weights each time.

X = np.random.random(size=(4,2))
neurons = [3,2]
mlp = MLP2(neurons=[3,2], activations=["linear", "sigmoid"])
mlp(X)

sigm = lambda x: 1/(1+np.exp(-x))
W = [i.numpy() for i in mlp.W]
b = [i.numpy() for i in mlp.b]
sigm((X.dot(W)+b).dot(W)+b)


Registra tu solución en linea

student.submit_task(namespace=globals(), task_id='T2');


Complete the loss method below so that it computes the loss of the MLP given predictions y_pred (as the output of the network) and desired output y_true.

$J(\mathbf{b}_1, b_2, \mathbf{W}_1, \mathbf{W}_2) = \frac{1}{m}\sum_{i=0}^{m-1} (\hat{y}-y)^2 + \lambda \sum_{i=0}^{n-1} \bigg[ \| \mathbf{b}_i\|^2_{mean} + \|\mathbf{W}_i\|^2_{mean} \bigg]$

observe the regularization term $$\lambda$$ which is stored as self.reg in your class.

For any weight or bias $$\mathbf{k}$$, the expression $$\| \mathbf{k}\|^2_{mean}$$ is the mean of all its elements squared.

def MLP3(neurons, activations, reg=0.):

from tensorflow.keras import Model
from tensorflow.keras.activations import relu, sigmoid, tanh, linear

class MLP_class(Model):
def __init__(self, neurons, activations, reg=0.):
super().__init__()
self.activation_map = {"linear": linear, "relu": relu, "tanh":tanh, "sigmoid": sigmoid}

assert len(neurons)==len(activations), \
"must have the same number of neurons and activations"

assert np.alltrue([i in self.activation_map.keys() for i in activations]), \
"activation string not recognized"

self.neurons = neurons
self.reg = reg
self.activations = [self.activation_map[i] for i in activations]

super().__init__()

def build(self, input_shape):
self.W = []
self.b = []

@tf.function
def call(self, X):
return s

@tf.function
def loss(self, y_true, y_pred):
r = ... # YOUR CODE HERE
return ...

return MLP_class(neurons, activations, reg)


test manually your code, the following two cells must return the same value everytime you execute them. Observe your MLP will initialize to different random weights each time.

X = np.random.random(size=(4,2)).astype(np.float32)
y_true = np.random.randint(2, size=(len(X),1)).astype(np.float32)
neurons = [3,2]
mlp = MLP3(neurons=[3,1], activations=["linear", "sigmoid"], reg=0.2)
mlp.loss(mlp(X), y_true).numpy()

sigm = lambda x: 1/(1+np.exp(-x))
W = [i.numpy() for i in mlp.W]
b = [i.numpy() for i in mlp.b]
y_pred = sigm((X.dot(W)+b).dot(W)+b)
((y_pred-y_true)**2).mean() + mlp.reg * np.sum([(i**2).numpy().mean() for i in mlp.W+mlp.b])


Registra tu solución en linea

student.submit_task(namespace=globals(), task_id='T3');


## Done!!¶

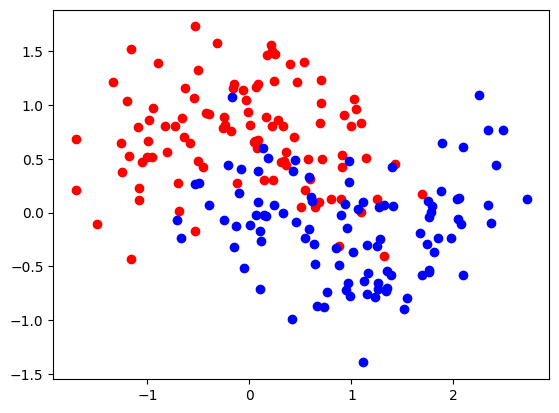

now you can try your class with synthetic data

X, y = make_moons(200, noise=.35)
X, y = X.astype(np.float32), y.astype(np.float32).reshape(-1,1)
plt.scatter(X[:,0][y[:,0]==0], X[:,1][y[:,0]==0], color="red", label="class 0")
plt.scatter(X[:,0][y[:,0]==1], X[:,1][y[:,0]==1], color="blue", label="class 1")


create MLP and train!!

mlp = MLP(neurons=[10,1], activations=["tanh","sigmoid"], reg=0.0)
metrics=[tf.keras.metrics.mae, tf.keras.metrics.binary_accuracy])

!rm -rf logs
tensorboard_callback = tf.keras.callbacks.TensorBoard(log_dir="logs/no_regularization")
mlp.fit(X,y, epochs=400, batch_size=16, verbose=0,
callbacks=[tensorboard_callback])

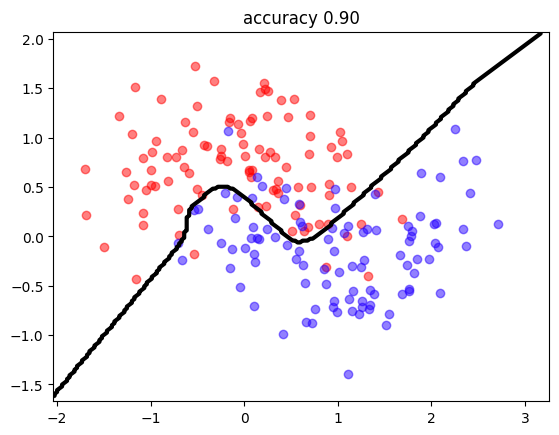

observe the accuracy and classification frontier

predict = lambda X: (mlp.predict(X)[:,0]>0.5).astype(int)
mlutils.plot_2Ddata_with_boundary(predict, X, y.reshape(-1));
plt.title("accuracy %.2f"%np.mean(predict(X)==y.reshape(-1)));

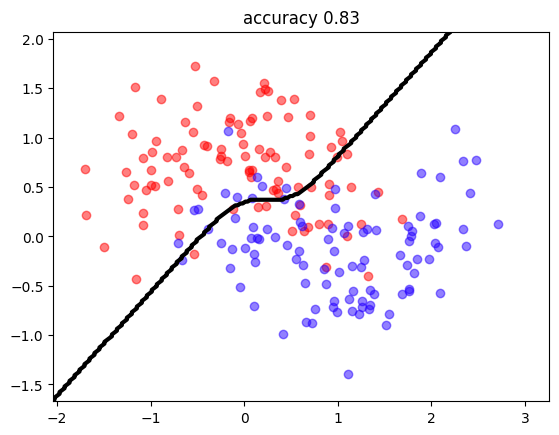

regularization must work!!!

tensorboard_callback = tf.keras.callbacks.TensorBoard(log_dir="logs/with_regularization")
mlp = MLP(neurons=[10,1], activations=["tanh","sigmoid"], reg=0.005)


%load_ext tensorboard
